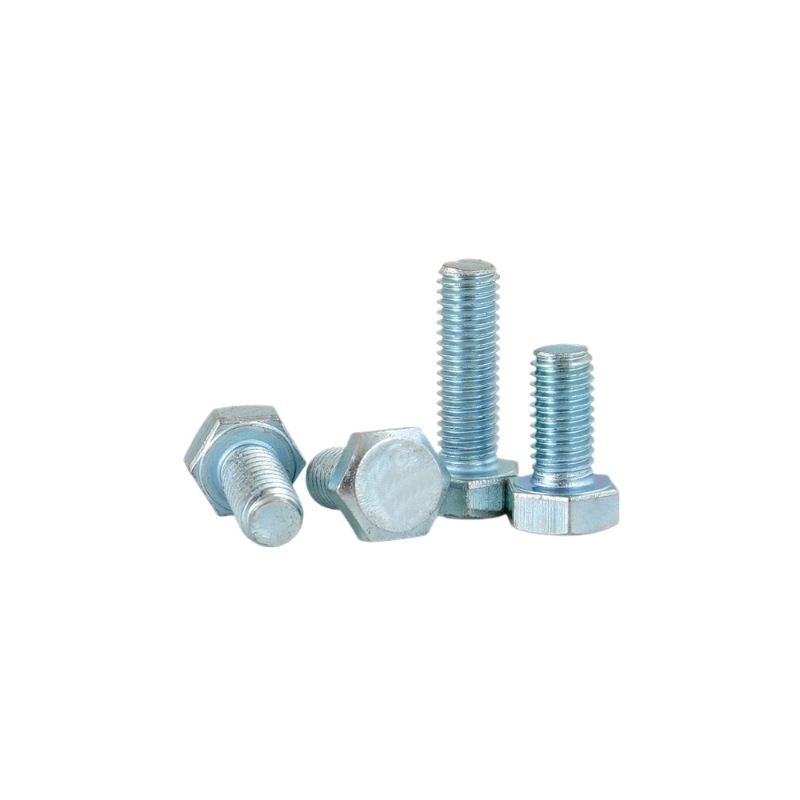

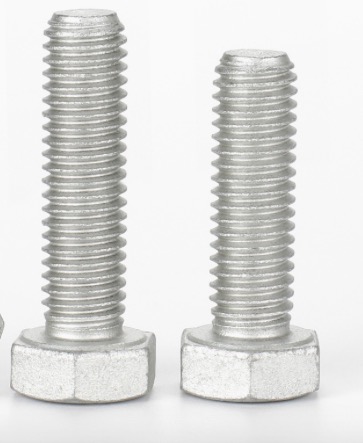

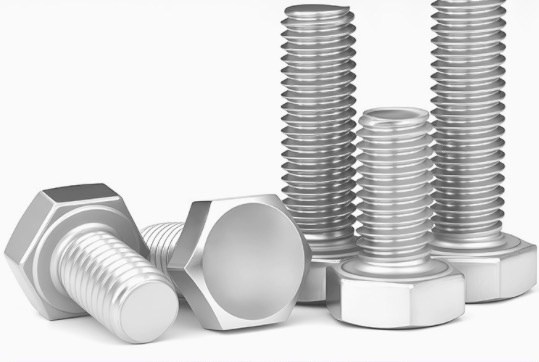

Hex bolt
Material：zinc plated
| d | k | s | e | ||||||
| A | B | Max | Min | Min | |||||
| Max | Min | Max | Min | A | B | A | B | ||
| (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | ||
| M1.6 | 1.22 | 0.98 | / | / | 3.2 | 3.02 | / | 3.41 | / |
| M2 | 1.52 | 1.28 | / | / | 4 | 3.82 | / | 4.32 | / |
| M2.5 | 1.82 | 1.58 | / | / | 5 | 4.82 | / | 5.45 | / |
| M3 | 2.12 | 1.88 | / | / | 5.5 | 5.32 | / | 6.01 | / |
| M3.5 | 2.52 | 2.28 | / | / | 6 | 5.82 | / | 6.58 | / |
| M4 | 2.92 | 2.68 | 3 | 2.8 | 7 | 6.78 | 6.64 | 7.66 | 7.5 |
| M5 | 3.65 | 3.38 | 3.74 | 3.26 | 8 | 7.78 | 7.64 | 8.79 | 8.63 |
| M6 | 4.15 | 3.85 | 4.24 | 3.76 | 10 | 9.78 | 9.64 | 11.05 | 10.89 |
| M7 | 4.95 | 4.65 | 5.04 | 4.56 | 11 | 10.73 | 10.57 | 12.12 | 11.94 |
| M8 | 5.45 | 5.15 | 5.54 | 5.06 | 13 | 12.73 | 12.57 | 14.38 | 14.2 |
| M10 | 6.56 | 6.22 | 6.69 | 6.11 | 17 | 16.73 | 16.57 | 18.9 | 18.72 |
| M12 | 7.68 | 7.32 | 7.79 | 7.21 | 19 | 18.67 | 18.48 | 21.1 | 20.88 |
| M14 | 8.98 | 8.62 | 9.09 | 8.51 | 22 | 21.67 | 21.16 | 24.49 | 23.91 |
| M16 | 10.18 | 9.82 | 10.29 | 9.71 | 24 | 23.67 | 23.16 | 26.75 | 26.17 |
| M18 | 11.72 | 11.28 | 11.85 | 11.15 | 27 | 26.67 | 26.15 | 30.14 | 29.56 |
| M20 | 12.72 | 12.28 | 12.85 | 12.15 | 30 | 29.67 | 29.16 | 33.53 | 32.95 |
| M22 | 14.22 | 13.78 | 14.35 | 13.65 | 32 | 31.61 | 31 | 35.72 | 35.03 |
| M24 | 15.22 | 14.78 | 15.35 | 14.65 | 36 | 35.38 | 35 | 39.98 | 39.55 |
| M27 | / | / | 17.35 | 16.65 | 41 | / | 40 | / | 45.2 |
| M30 | / | 19.12 | 18.28 | 46 | / | 45 | / | 50.85 | |
| M33 | / | / | 21.42 | 20.58 | 50 | / | 49 | / | 55.37 |
| M36 | / | / | 22.92 | 22.08 | 55 | / | 53.8 | / | 60.79 |
| M39 | / | / | 25.42 | 24.58 | 60 | / | 58.8 | / | 66.44 |
| M42 | / | / | 26.42 | 25.28 | 65 | / | 63.1 | / | 71.3 |
| M45 | / | / | 28.42 | 27.58 | 70 | / | 68.1 | / | 76.95 |
| M48 | / | / | 30.42 | 29.58 | 75 | / | 73.1 | / | 82.6 |
| M52 | / | / | 33.5 | 32.5 | 80 | / | 78.1 | / | 88.25 |
