Product Details

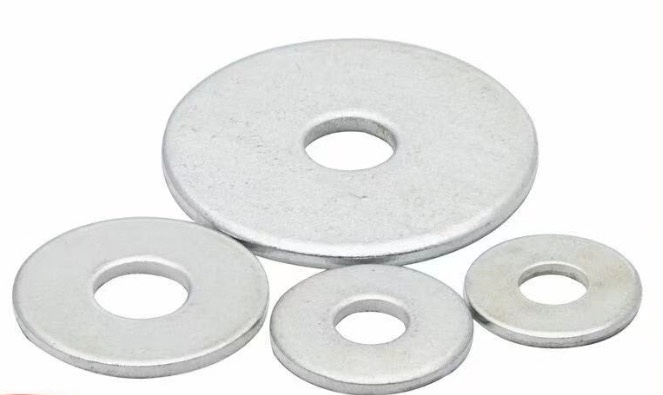

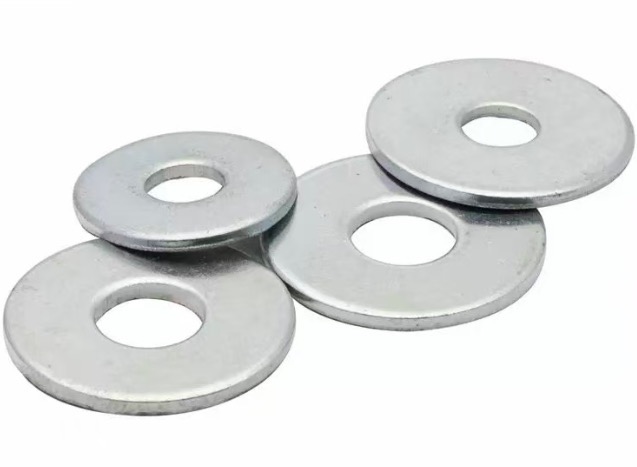

Flat washer
Material: zinc plated; stainless steel
| Size | Thickness(s) | Inner Diameter(d1) | Outer Diameter(d2) | |||
| Min | Max | Min | Max | Min | Max | |
| (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | |
| M4 | 0.9 | 0.7 | 4.3 | 4.48 | 9 | 8.64 |
| M5 | 1.1 | 0.9 | 5.3 | 5.48 | 10 | 9.64 |
| M6 | 1.8 | 1.4 | 6.4 | 6.62 | 12 | 11.57 |
| M7 | 1.8 | 1.4 | 7.4 | 7.62 | 14 | 13.57 |
| M8 | 1.8 | 1.4 | 8.4 | 8.62 | 16 | 15.57 |
| M10 | 2.2 | 1.8 | 10.5 | 10.77 | 20 | 19.48 |
| M12 | 2.7 | 2.3 | 13 | 13.27 | 24 | 23.48 |
| M14 | 2.7 | 2.3 | 15 | 15.27 | 28 | 27.48 |
| M16 | 3.3 | 2.7 | 17 | 17.27 | 30 | 29.48 |
| M18 | 3.3 | 2.7 | 19 | 19.33 | 34 | 33.48 |
| M20 | 3.3 | 2.7 | 21 | 21.33 | 37 | 36.38 |
| M22 | 3.3 | 2.7 | 23 | 23.33 | 39 | 38.38 |
| M24 | 4.3 | 3.7 | 25 | 25.33 | 44 | 43.38 |
| M26 | 4.3 | 3.7 | 27 | 27.33 | 50 | 49.38 |
| M27 | 4.3 | 3.7 | 28 | 28.33 | 50 | 49.38 |
| M28 | 4.3 | 3.7 | 29 | 29.33 | 50 | 49.38 |
| M30 | 4.3 | 3.7 | 31 | 31.39 | 56 | 55.28 |
| M32 | 5.6 | 4.4 | 33 | 33.62 | 60 | 58.8 |
| M33 | 5.6 | 4.4 | 34 | 34.62 | 60 | 58.8 |
| M35 | 5.6 | 4.4 | 36 | 36.62 | 60 | 64.8 |
| M36 | 5.6 | 4.4 | 37 | 37.62 | 66 | 64.8 |
